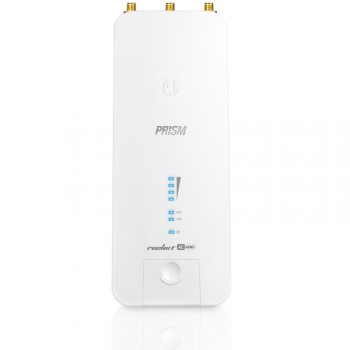

Ubiquiti Networks Rocket Prism RP-5AC-Gen2

Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. Deploy the Rocket Prism 5AC Gen 2 anywhere in the world. It delivers complete coverage of the 5 GHz spectrum with a single radio. The Rocket Prism 5AC Gen 2 allows for flexibility in configuring channel bandwidths (subject to local country regulations).

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry. Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer.

High data rates require a high Signal-to-Noise Ratio (SNR), which is challenging to achieve, especially in noisy, high-density areas. Integrated into Ubiquiti's custom silicon, airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialized circuitry, the High-Selectivity Receiver (HSR). airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design, so an airMAX ac AP with airPrism technology can provide significantly greater performance than a typical AP.


Features

- Real-Time Reporting: airOS 8 displays the following RF information including Persistent RF Error Vector Magnitude (EVM) constellation diagrams, Signal, Noise, and Interference (SNI) diagrams and Carrier to Interference plus Noise Ratio (CINR) histograms
- Spectral Analysis: airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView runs in the background without disabling the wireless link, so there is no disruption to the network
