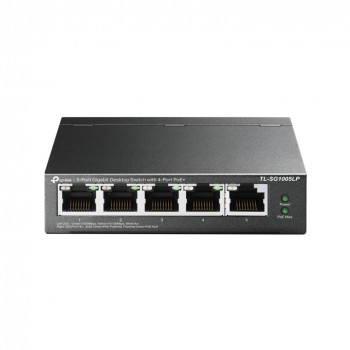

TP-Link TL-SG1005LP
- Brand: TP-Link
- Product Code: TL-SG1005L
- Availability: In Stock with Supplier
- NZ$69.00 Incl GST
-
Eligible Work from home.
Eligible Essential services.
Auckland North Island South Island 1-2 days 1-2 days 2-3days
Quantity:
Features
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play, No Configuration Required
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES
Interface
5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIXNetwork Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-4
Power Supply: 40 WMac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)Max Heat Dissipation
14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP SnoopingTransfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG1005LP
Power Adapter
Installation GuideEnvironment
Operating Temperature: 0-40 C (32-104 F);
Storage Temperature: -40-70 C (-40-158 F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
