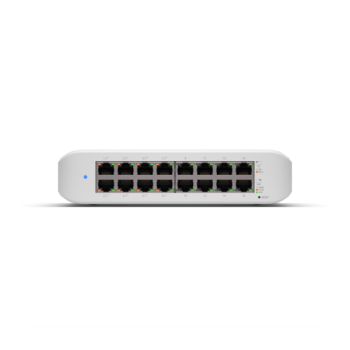

The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+
- Managed by UniFi Controller
- 60W power supply
- Wall-mountable (Kit included)
- Managed by UniFi Network Controller version: 5.13.5 or higher
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
MECHANICAL
Dimensions
191.7 x 185 x 43.7 mm
Weight
1.2 kg
HARDWARE
Total Non-Blocking Line Rate
16 Gbps
Max. Power Consumption
15W
Power Method
Universal AC Input: 100-240VAC
Power Supply
Internal 60W AC/DC Power Supply
Networking Interfaces
(16) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface
Ethernet In-Band
Max PoE+ Wattage per Port by PSE
30W
Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature
-15 to 40° C (5 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifcations
CE, FCC, IC
LED
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
Green: 1G, Amber: 10/100 Mbps
PoE
Amber: IEEE 802.3af/at
