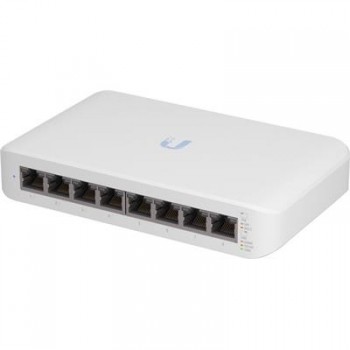

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter
- Wall-mountable (Kit included)
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Mechanical
Dimensions
99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
Weight
450 g (15.87 oz)
Hardware
Total Non-Blocking Line Rate
8 Gbps
Max. Power Consumption
8W
Power Method
54VDC, 1.1A Power Adapter
Power Supply
External 54V/60W Power Adapter
Supported Voltage Range
DC 50V to 57V
Networking Interfaces
(8) 10/100/1000 Mbps Ethernet RJ45 Ports
PoE Interfaces
(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface
Ethernet In-Band
Max. PoE+ Wattage per Port by PSE
30W
Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature
-15 to 40° C (5 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
Green: 1G, Amber: 10/100 Mbps
PoE
Amber: IEEE 802.3af/at
