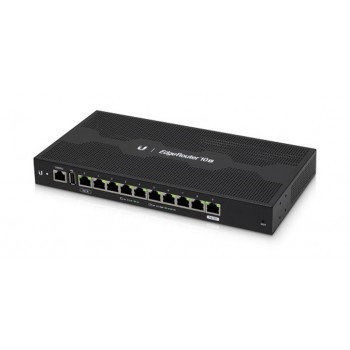

Ubiquiti Networks EdgeRouter 10X
- Brand: Ubiquiti
- Product Code: ER-10X
- Availability: Out Of Stock
- NZ$197.00 Incl GST
-
Eligible Work from home.
Eligible Essential services.
Auckland North Island South Island 1-2 days 1-2 days 2-3days
Quantity:
Features
The EdgeRouter 10X offers next-generation price/performance value: up to 260,000 packets per second processing with a line rate of up to 1 Gbps. Ten Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 10. The EdgeRouter 10X supports Layer-2 switching.
The EdgeRouter 10X can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
The EdgeRouter 10X is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX devices across multiple sites.
Key Features
- (10) Gigabit RJ45 routing ports
- 24V PoE input on port 0
- 24V PoE passthrough option on port 9
- Ports 0-9 can be configured for line-rate Layer 2 switching
- 260,000 packets per second for 64-byte packets
- 1 Gbps for packets 1518 bytes or larger in size
- Silent, fanless operation
- Compact, durable metal caseSpecifications
Manufacturer's Code
ER-10X
Dimensions
268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight
600 g (1.32 lb)
Max. Power Consumption
8W (Excludes PoE Output)
Power Method
External AC/DC Power Adapter, 24W; (24V, 1A) (Included); 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Voltage Range
DC 9 - 30VDC and 24V Passive PoE 20 - 30V
Button
Reset
LEDs
Data Ports Link/Activity, PoE (Port 9 Only)
Interfaces Management
(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0); Networking (10) 10/100/1000 RJ45 Ports
Layer 3 Forwarding Performance
Packet Size: 64 Bytes 260,000 pps; Packet Size: 1518 Bytes or Larger 1 Gbps (Line Rate)
Processor
Dual-Core 880 MHz, MIPS1004Kc
System Memory
512 MB DDR3 RAM
On-Board Flash Storage
512 MB NAND
Mounting
Wall or Rack With optional Rack Mount Kit, model ER-RMKIT
Operating Temperature
-10 to 45° C (14 to 113° F)
Operating Humidity
10 - 90% Noncondensing
PoE In
(1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out
(1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port
15W (24V, 0.63A)
Passive PoE Output
DC/PoE Passthrough
